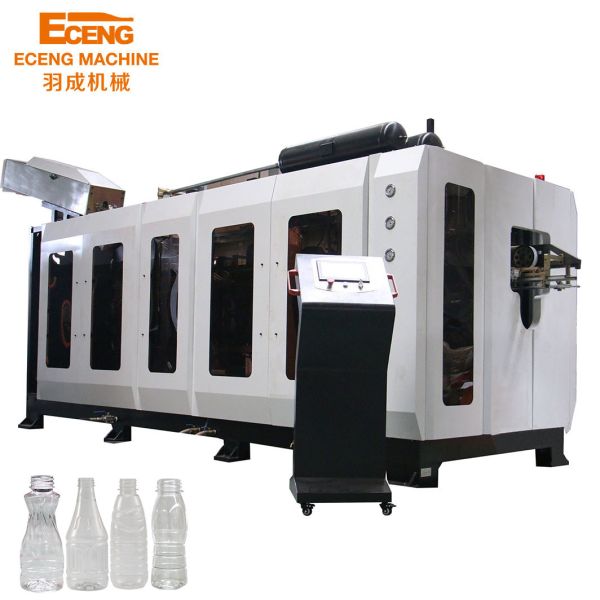

Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine

Brand Name : Eceng

Model Number : K4

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Set/Sets per Year

Delivery Time : 60days

Packaging Details : standard export wooden case or according to your requirements

Plastic Processed : PET

Bottle Volume(ml) : 2000 ml

PLC Brand : DELTA

Warranty : 1 Year

Key Selling Points : Automatic

Warranty of core components : 1 Year

output : 7000

Port : Shanghai

Contact Now

Eceng 100ml 150ml 200ml 1L 2L K4 hands sanitizer alcogel ethyl alcohol pet shampoo bottle making stretch blow blowing machine



Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine

Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
specification
Model K4
Bottle type specification
Cavity
4
Max.volume
2L
Bottle mouth maximum overall diameter
25-29mm
Bottle biggest diameter
100mm
Bottle maximum height
330mm
Capacity specification
Theory output
6000BPH
Bottle type volume
600ML
Bottle type weight
13.5g
Bottle type
Round
Power specification
Light tube quantity
16pcs
Light tube power
1.25KW
Maximum heating power
20KW
All electric machine installation
29KW
Actual consumption
30%--60%
Air pressure specification
Work pressure
5-6kg/cm2
Blow bottle pressure
25-45kg/cm2
Higher -pressure gas consumption
6000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
6000kcal/hr
Forzen water flow
120L/min
Machine specification
Machine size
3.6x1.6x1.9
Machine weight
4.3ton
Eceng 100ml 150ml 200ml 1L 2L K4 hands sanitizer alcogel ethyl alcohol pet shampoo bottle making stretch blow blowing molding ma
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
Automatic 4 cavity plastic alcohol bottle stretch blow molding moulding machine
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
blowing mould
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you
Company Introduction
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.
Packing&Shipping
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
After Sales Service
1. Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. the sample service
1' We can send you the video of the running machine.
2' You are welcome to come to visit our factory,and see the machine running.
4. We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5. well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 . 12 Months guarantee and life-long technical support.
7. Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.

Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
Automatic 4 Cavity PET Blowing Machine 150ml Shampoo Bottle Making Machine
